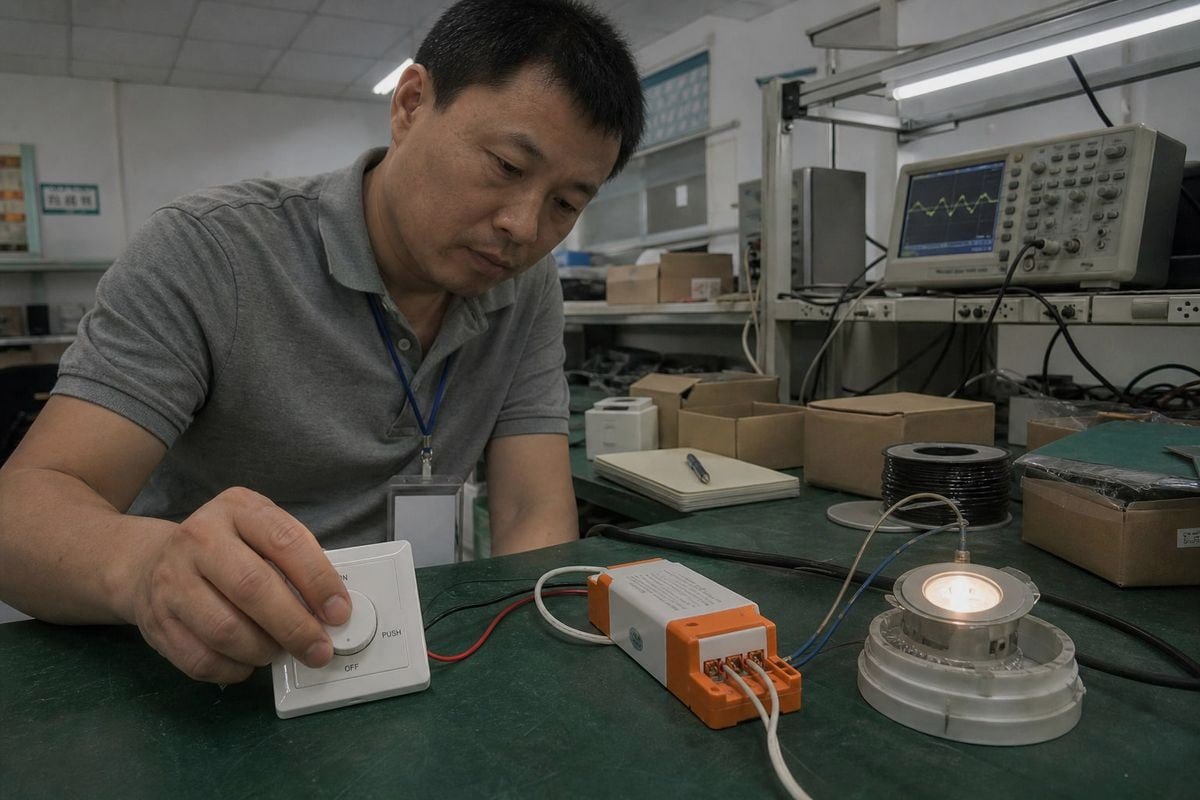

Matching TRIAC dimmers with CC drivers looks simple until a project flickers on site. I have seen this happen to buyers who trusted two “dimmable” labels blindly.
To match a TRIAC dimmer with a constant-current LED driver, choose a CC driver rated for TRIAC phase-cut dimming, match the dimmer’s leading- or trailing-edge type, AC input voltage, load range, and wattage, confirm the LED’s current and forward-voltage window, then verify the exact dimmer-driver pair by real testing.
That answer sounds compact. But every clause in it hides a failure mode. Below, I will walk you through each check, in the order I use with our own customers.

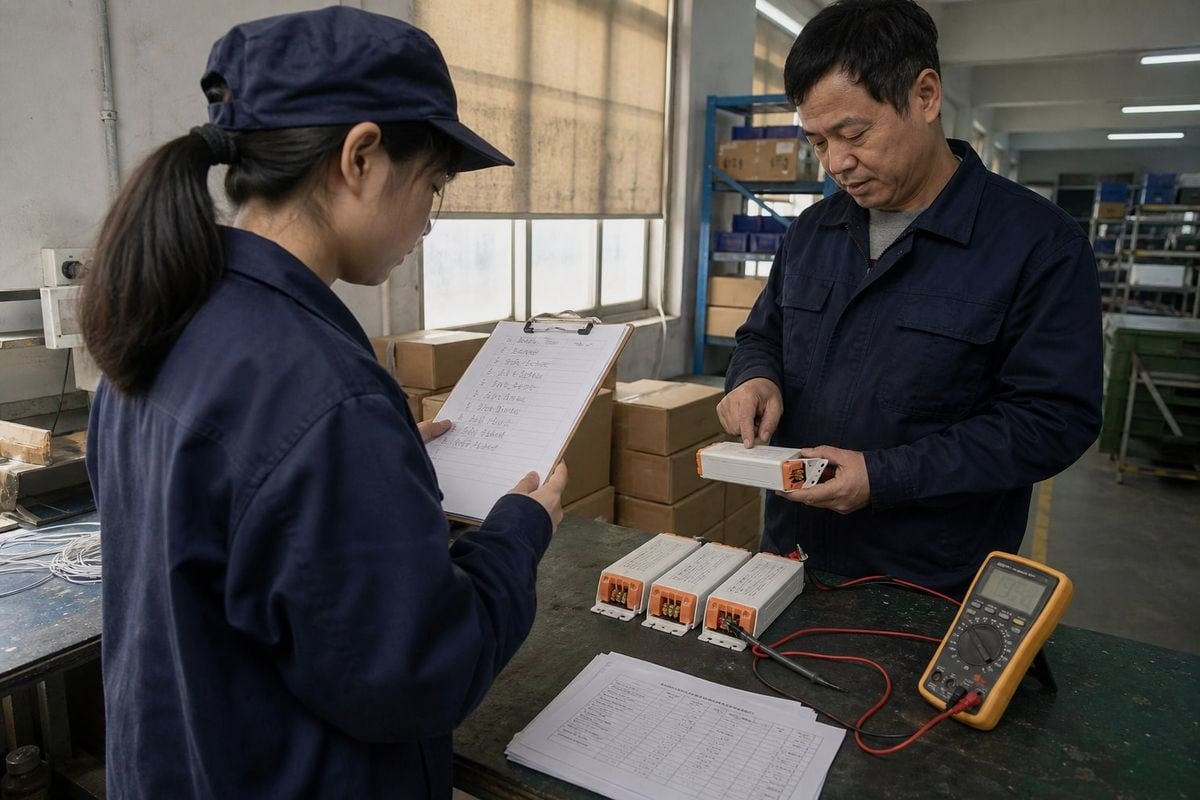

What Should I Check Before Pairing a TRIAC Dimmer with a CC Driver?
Last year, a Singapore engineering buyer sent me a “TRIAC dimmable” driver spec from another supplier and asked why his downlights flashed at 10% brightness. The datasheet never told him.
Before pairing, check ten things: LED forward-voltage range, required LED current, driver input voltage and frequency, leading- or trailing-edge compatibility, minimum and maximum load, dimming range, startup behavior, number of drivers per dimmer, the dimmer’s LED-rated load, and actual compatibility testing.
The core insight I always share first: TRIAC compatibility is not determined by the word “TRIAC” alone. The real issue is whether the dimmer’s chopped AC waveform 1 can be correctly detected and processed by the driver’s input stage while maintaining stable operation at the required load. Phase-cut dimming slices the AC sine wave. The driver must read that sliced waveform cleanly, every half-cycle, at every dimming position.
Start on the Output Side, Not the Input Side
Many buyers start with the dimmer. I tell them to start with the LED load. A CC driver regulates current, so the driver’s output current must equal the LED’s rated current, and the LED’s forward voltage must sit inside the driver’s output-voltage window. If that pairing is wrong, no dimmer on earth will fix it.
Then Move to the Input Side
Only after the output matches do I look at the AC side. Here is the full pre-purchase checklist I give our distributors:
| # | Check Item | Why It Matters |
|---|---|---|
| 1 | LED forward voltage range | Must fall inside driver’s output window |
| 2 | Required LED current | CC drivers regulate current, not voltage |
| 3 | Driver input voltage/frequency | 120V vs 230V vs 277V mismatch causes erratic dimming |
| 4 | Leading edge vs trailing edge | Wrong phase type causes buzzing and stress |
| 5 | Minimum and maximum load | Under-loading a TRIAC causes flicker |
| 6 | Dimming range | Defines usable low-end brightness |
| 7 | Startup behavior | Slow or flashing startup annoys end users |
| 8 | Drivers per dimmer | Cumulative inrush current 2 limits the count |
| 9 | Dimmer’s LED-rated load | Often far below its incandescent rating |
| 10 | Actual compatibility testing | The only proof that the pair works |
One warning I give every B2B client: do not match the driver to the dimmer based only on wattage. A 30 W LED load does not mean you simply need a “30 W TRIAC-compatible driver.” Wattage is one line out of ten.

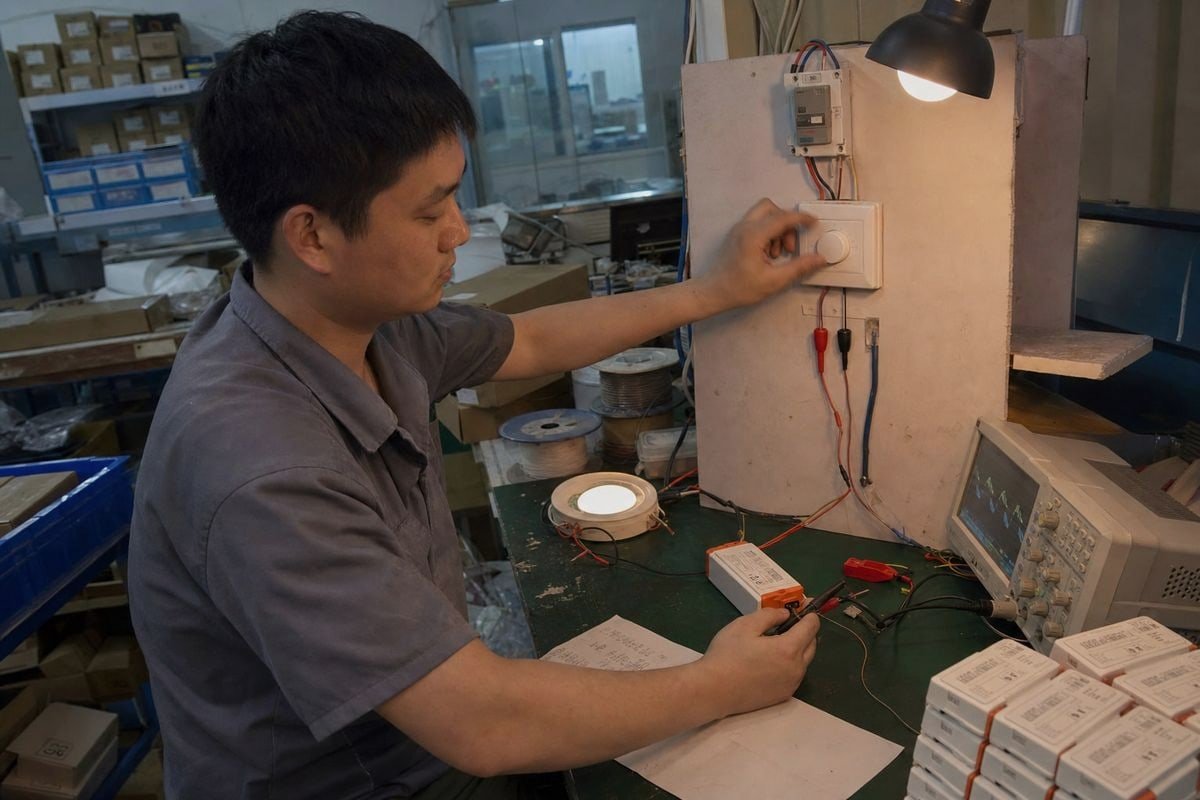

How Do I Know If My CC Driver Is Compatible with My TRIAC Dimmer?
When we develop a new TRIAC dimmable driver at our factory, we bench-test it against dozens of dimmer models before release. That habit came from one hard lesson: datasheets promise, waveforms prove.
A CC driver is compatible when its datasheet explicitly states TRIAC or phase-cut dimming support, its input matches the dimmer’s phase type and voltage, the connected load sits within the dimmer’s LED-rated range, and the exact pair appears on a manufacturer-tested compatibility list or passes bench testing.
Here is the verification process I recommend, in the exact order we use in our own lab.
A Five-Step Verification Process
- Read the driver datasheet. Look for explicit wording: “TRIAC dimmable,” “phase-cut compatible,” “leading-edge compatible,” or “forward phase.” Vague terms like “dimmable” alone are a red flag.
- Read the dimmer datasheet. Confirm it is marked “LED compatible” or “universal phase-cut,” and note its minimum and maximum LED load, not the incandescent load.
- Match phase type. Leading edge vs trailing edge is not a checkbox. A leading-edge TRIAC dimmer paired with a driver tuned for trailing-edge (ELV) behavior can buzz, overheat, and fail early.
- Check the compatibility list. In production, I trust a manufacturer-tested dimmer compatibility list far more than the phrase “TRIAC dimmable” printed on a datasheet. The interaction chain runs dimmer → TRIAC → input filter → rectifier → bulk capacitor → control IC, and a heavily filtered input can make an otherwise “compatible” driver behave poorly with certain dimmers.
- Bench-test one unit, then field-test a small batch. Sweep the full dimming range slowly. Watch for flicker, dead travel, buzzing, and dropout near the bottom.
Signals of a Well-Designed TRIAC-Dimmable Driver
Modern drivers use several techniques to stay friendly with phase-cut dimmers. Prioritize drivers with intelligent bleeder circuits, which draw extra current only at low dimming levels to keep the TRIAC stable while preserving a high power factor at full brightness. Active damping is another strong signal; it suppresses the resonant oscillations caused by the TRIAC’s rapid switching, which improves flicker-free performance in demanding spaces. In North American projects, NEMA SSL 7A compliance 3 is a useful benchmark, because it defines how phase-cut dimmers and LED drivers should interoperate. Also check the dimming curve: linear vs logarithmic mismatch creates “dead travel,” where moving the slider changes nothing for part of the range.

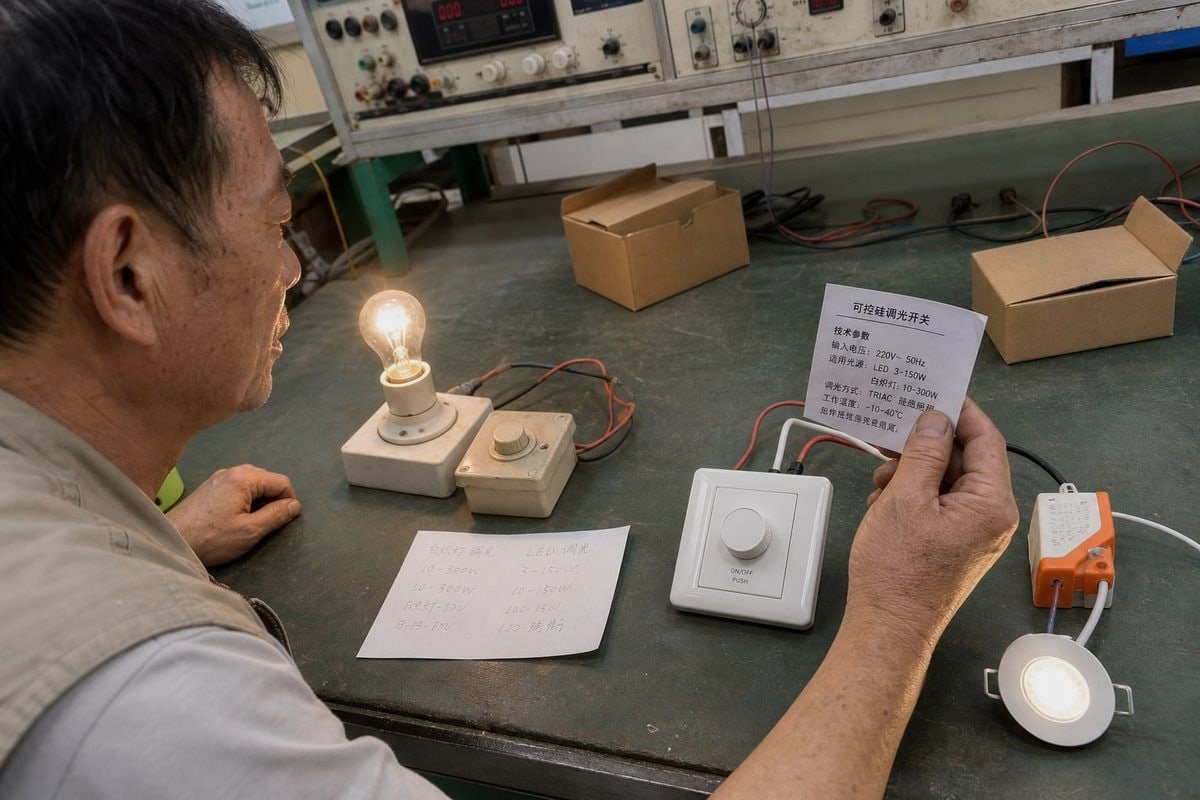

Why Does My TRIAC Dimmer Flicker or Fail to Dim Smoothly with a CC Driver?
A distributor in Vietnam once called me in a panic: one fixture per room dimmed fine, but three fixtures flickered. Same driver, same dimmer, different behavior. The cause was current, not quality.
Flicker usually happens because the TRIAC cannot maintain its holding current with a low-power LED load, the driver’s input filter distorts phase-angle detection, or inrush current disturbs firing. Symptoms include low-end flicker, random shutoff, dead dimming zones, buzzing, and dropout.
TRIAC dimmers were designed for resistive loads like incandescent bulbs. An LED driver presents a very different input characteristic. At low power, the driver may not draw enough current to keep the TRIAC conducting reliably, especially near the start of each AC half-cycle. STMicroelectronics notes the TRIAC typically needs around 30–50 mA of holding current 4 during the half-cycle to stay latched. If the driver’s current draw dips below that, the TRIAC misfires, and you see flicker or flashing.
The Minimum-Load Problem, Explained
This is the hidden issue most generic articles miss. When the load is too small, the TRIAC turns off mid-cycle. The driver then loses input, resets, and restarts, over and over. That is your flicker. And here is the industry nuance many buyers get wrong: increasing the LED wattage does not automatically solve compatibility. The driver’s input circuit, holding current behavior, startup sequence, EMI filter, bulk capacitor, and phase-angle detection strategy all influence how the dimmer behaves.
Symptom-to-Cause Troubleshooting Table
| Symptom | Most Likely Cause | Practical Fix |
|---|---|---|
| Flicker at low brightness | TRIAC losing holding current | Use a driver with an intelligent bleeder circuit |
| Random shutoff | Load below dimmer’s minimum load requirement | Add load or switch to a tested driver |
| Dead zone in the travel | Dimming curve mismatch | Adjust low-end trim; match linear vs log curves |
| Audible buzzing | Phase type mismatch or resonance | Match leading/trailing edge; choose active damping |
| Different behavior with fixture count | Cumulative inrush current | Derate dimmer; limit drivers per circuit |
| Ghosting when off | Leakage current through dimmer | Verify minimum load and bleeder design |
Why Fixture Count Changes Everything
Each driver’s bulk capacitor charges at the TRIAC’s turn-on moment. Multiply that inrush current by ten drivers and the peak can weld dimmer contacts, even if the total running wattage is low. This is why the number of drivers per dimmer sits on my checklist. Also adjust the dimmer’s low-end trim where available; a stable minimum conduction angle prevents the driver from dropping out at the bottom of the dimming range.

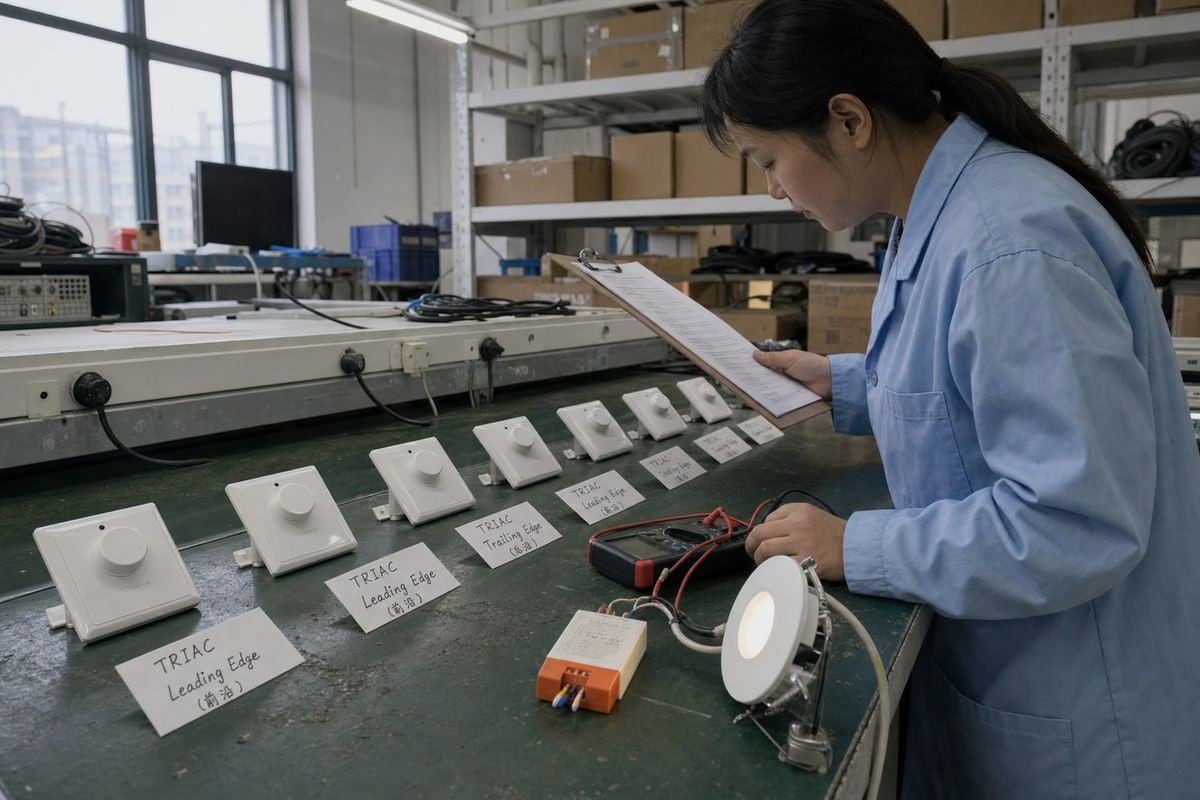

Which TRIAC Dimmer and CC Driver Combination Works Best for My Project?
Our engineers weigh a constant trade-off when we design driver front-ends: a stronger EMI filter improves electrical noise, but it can blur the chopped waveform the driver needs to read. Project selection faces the same tension.
The best combination is a CC driver from a family with published dimmer compatibility lists, paired with a matching rotary TRIAC dimmer whose LED-rated load covers your total driver count with 10–20% margin, verified by a small pilot installation before full rollout.
Different projects need different pairings. Here is how I frame it for buyers sourcing from us for building engineering work across Southeast Asia and Europe.
| Project Type | Recommended Pairing | Key Spec to Watch |
|---|---|---|
| Hotel retrofit, legacy wall dimmers | Universal phase-cut CC driver | Deep dimming range, low-end stability |
| New residential downlights | Rotary TRIAC dimmer + tested CC driver | LED-rated load of the dimmer |
| Small commercial, few circuits | Trailing-edge dimmer + compatible driver | Smooth low-end, silent operation |
| Large commercial, many circuits | Consider 0-10V or DALI instead | Scalability and centralized control |
When TRIAC Is the Right Choice
Some buyers argue that a “TRIAC-dimmable” label is enough for normal projects. For a handful of fixtures on one wall dimmer, that view often works out. But I take the conservative engineering position: only tested compatibility between the exact dimmer model and the exact driver model is trustworthy, because the cost of a site callback dwarfs the cost of a pilot test. TRIAC remains a cost-effective retrofit path. End users keep their familiar wall plates, like the compact glossy rotary dimmer with push on/off that we ship widely, and installers avoid new control wiring.
When to Step Up to Another Protocol
The market is shifting toward universal phase-cut drivers and hybrid compatibility labels, because customers keep legacy dimmers but expect LED-grade performance. Still, for large installations, 0-10V or DALI is more robust. DALI gives digital addressing 5; many drivers use pulse width modulation or hybrid dimming on the output side to reach very low levels smoothly. If your project has dozens of circuits, long dimming scenes, or strict flicker requirements, phase-cut dimming is the wrong tool. When compatibility stays uncertain after testing, switching the dimmer type or driver family is a more reliable fix than trying to “tune” an incompatible pair. Also apply a 10–20% load margin on the dimmer as a buying rule, and confirm certifications like CE and SELV markings for your target market.
Conclusion
Match TRIAC dimmers with CC drivers by verified pairs, not labels. Check phase type, load range, holding current, and forward voltage, then test. That discipline prevents flicker and costly callbacks.
