RF RGB+CCT Control System

The Boqi Wireless RGB+CCT Series encompasses a five-channel controller, inclusive of a handheld remote and a panel remote. This series facilitates a broad spectrum of intelligent control features, including on/off switching, adjustment of color temperature and brightness, selection of static colors, dynamic effects, group partitioning, scene creation, timing functionalities, sensor integration, and more.

The series’ RGB+CCT controller, featuring five channels, is universally compatible with all forms of remote controls, including handheld and panel remotes. It facilitates control over RGB+ color temperature (across five channels), while also allowing for separate connections of RGB (three channels) and color temperature (two channels).
Utilizing advanced 2.4G wireless technology, the remote control offers an extensive range of up to 30 meters. The controllers are equipped with a cascading function, enabling signal forwarding between controllers to extend control distances to several hundred meters.
Each controller can be synchronized with up to ten remote controls. The same remote control can be configured for different zones within a controller, offering a versatile and flexible grouping functionality.
Remote controls in this series are capable of managing single or multiple zones. Each zone can be paired with an unlimited number of controllers, allowing for extensive scalability.
Controllers within the same zone are designed to automatically synchronize, ensuring seamless operation and integration.
The RGB+CCT series is comprehensive, including a five-channel constant voltage controller, an RGB+CCT remote control, an RGB+CCT panel, a WiFi-RF converter, and a five-channel power repeater, among other components.

RF RGB+CCT Control System - Product Line

RF CV Controller (RGB+CCT, RGBW, RGB, CCT, DIM)

Supports DC12/24/36/48V input, with 5-channel PWM output for RGB+CCT LED strips.
Features 4096-level flicker-less PWM dimming for smooth lighting.
Utilizes 2.4G wireless with a 30-meter range, extendable via cascading.
Accepts 1-10 remotes for efficient partition control.
Forms a complete lighting system with remote control, panel, and WiFi-RF converter.
Includes 10 dynamic modes with jump and gradual change styles.
Equipped with over-heat, short circuit, and reverse polarity protection.
Compatible with power repeaters for expanded output.

V5-M

M5

V5

V5-L

V5-M+R17

RT5+V5-M

MODEL	DESCRIPTION	DATASHEET
V5-M	5CH*3A 12-24VDC CV Controller

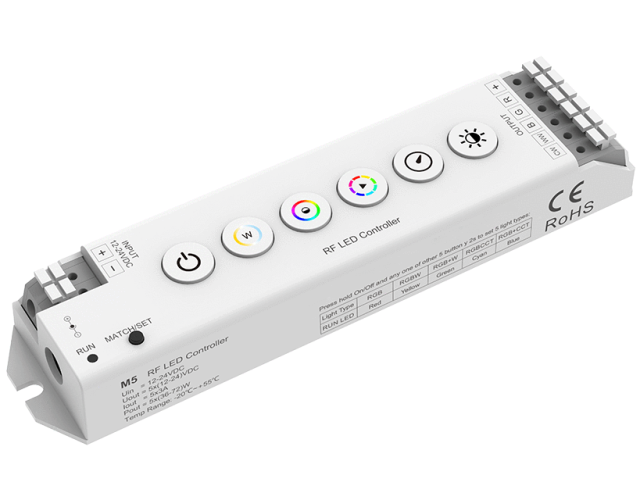

M5	5CH*3A 12-24VDC CV Controller M5
V5	5CH*5A 12-48VDC CV Controller(Push Dim)
V5-L	5CH*6A 12-48VDC CV Controller(Push Dim)
V5-M+R17	3A*5CH RGB+Color Temperature LED Controller Set
RT5+V5-M	3A*5CH RGB+Color Temperature LED Controller Set

RF RGB+CCT Remote Controller

The handheld RGB+CCT remote control is available in both single and four-zone versions, powered by either 7#AAA or button batteries, offering a range of options to suit customer preferences.

Designed for RGB+CCT LED lights, this remote facilitates on/off control, color temperature and color adjustments, dynamic changes, group partitioning, and scene functions, enabling the creation of both static and dynamic colorful effects.
The four-zone RGB+CCT remote functions as a universal controller, allowing each zone to be set to single color, dual color temperature, RGB, RGBW, or RGB+CCT light types, compatible with corresponding LED lights.
Operating on wireless 2.4G technology, the remote offers a control distance of 30 meters, which can be extended to several hundred meters through cascading between controllers.
The remote’s standby time ranges from six months to two years, depending on usage frequency.
Each remote can theoretically pair with an unlimited number of controllers, and each zone of a multi-zone remote can also match with an infinite number of controllers.
Each controller can pair with 1-10 remote controls, and can be configured in different zones of a remote control for versatile operation.

R8-5

R17

RT5

RT10

RS10

R10

MODEL	DESCRIPTION	DATASHEET
R8-5	4 Zones Universal Remote Control
R17	1 Zone RGB+Color Temperature Remote Control
RT5	1 Zone RGB+Color Temperature Remote Control
RT10	4 Zones Universal Remote Control
RS10	8 Scenes 8 Zones Universal Remote Control
R10	1 Zone RGB+Color Temperature Remote Control

RF RGB+CCT Panel Remote Controller

The RGB+CCT panel remote control is a sophisticated 4-zone touch glass panel, available in both white and black. It offers high voltage AC100-240V or 7#AAA battery power options, catering to diverse customer needs.

This remote is specifically designed for RGB+CCT LED lights, enabling control over on/off functions, color temperature and color adjustments, dynamic changes, group partitioning, and scene settings to create both static and dynamic colorful effects.
The 4-zone RGB+CCT panel remote serves as a universal controller. Each zone can be configured for single color, dual color temperature, RGB, RGBW, and RGB+CCT light types, ensuring compatibility with a variety of LED lights.
Utilizing wireless 2.4G technology, the panel remote offers a 30-meter control range, which can be extended to several hundred meters through controller cascading.
The battery-powered panel remote’s standby time varies from six months to two years, based on usage frequency.
Theoretically, each remote can pair with an unlimited number of controllers, and each zone in a multi-zone remote can match with countless controllers.
Each controller is capable of pairing with 1-10 remote controls, allowing for versatile matching in different zones of a remote control.

T15

T25

TW5

TW5-4

T15(IT)

MODEL	DESCRIPTION	DATASHEET
T15	4 Zones Universal Touch Panel Remote Control (100-240VAC Input)
T25	4 Zones RGB+CCT Remote Control (2*AAA Battery)
TW5	1 Zone RGB+CCT Wall Mounted Touch wheel Panel Remote Control(CR2032 Battery)
TW5-4	4 Zone RGB+CCT Wall Mounted Touch wheel Panel Remote Control(CR2032 Battery)
T15(IT)	4 Zones Wall Mounted Touch Panel (100-240VAC Input)

Download Full Catalog to View More Products

Access our latest catalog to gain comprehensive insights into our extensive range of products, encompassing their features, benefits, specifications, functions, and warranties, among other pertinent details. Opt for the paperless version to save money and protect the environment.

How to choose right RF RGB+CCT Controller?

Choosing the right RF (Radio Frequency) RGB+CCT (Red, Green, Blue + Color Temperature Control) Controller for your LED lighting setup requires considering several key factors:

Compatibility: Ensure the controller is compatible with your LED lights. Check if it supports RGB, RGBW (RGB + White), or RGB+CCT LED strips or bulbs. This compatibility is crucial for proper functioning and color mixing.
Control Zones: Decide how many zones or areas you want to control independently. Some controllers offer single-zone control, while others provide multiple zones. This feature is important for creating different lighting moods in various parts of a room or building.
Remote Control Features: Look for a controller with an intuitive and user-friendly remote. Features like dimming, color temperature adjustment, and preset scenes add convenience. Some remotes also offer LCD screens for better visibility and control.
Range: RF controllers typically offer a significant control range, but ensure it meets your needs. A standard RF controller usually covers about 30 meters, which is suitable for most indoor applications. For larger areas, look for controllers with extended range capabilities.
Power Requirements: Verify the voltage and power requirements of the controller and ensure they match your power source. Common inputs include DC12V, DC24V, and others.
Additional Features: Consider controllers with extra functionalities like WiFi connectivity for smartphone control, timer settings, dynamic modes (like fading or flashing), and compatibility with smart home systems.
Safety and Reliability: Opt for controllers with built-in safety features like overheat protection, short circuit protection, and compliance with relevant electrical standards to ensure safe operation.

Remember, the right controller should seamlessly integrate with your lighting system while offering the control and features you need for your specific application.

Lead Time

Samples: lead times are typically 2-3 days, extending for customizations like custom labels.
Bulk Orders: take 3-4 weeks to process.
Shipping Time: Express shipping via couriers like DHL or FedEx takes 5-7 days, while sea freight is around 2-4 weeks.
Guarantee: Boqi maintains an efficient order processing team, ensuring minimal lead times even amid raw material shortages by stocking essential components. For urgent projects, a specialized team ensures schedules are met.

5 Year Warranty

boqi’s R&D team, rigorous protocols, and advanced factory steps ensure our LED drivers’ high quality.

Our engineers bring deep expertise in electronics and lighting, contributing to our robust development process.
We enforce strict production standards, using only certified components to guarantee quality.
Designs are crafted with significant safety and performance margins, ensuring durability.
Our verification system is meticulous, reflecting our commitment to precision in product validation.

Tell us your requirements

Boqi encourages customer feedback and offers customization options to meet specific requirements. They provide a platform for customers to submit their requirements and suggestions.

*We respect your confidentiality and all information is protected

FAQ

What is an RF RGB+CCT Controller?

An RF RGB+CCT Controller is a device used to control the color and temperature of LED lighting systems. It uses radio frequency signals to adjust the red, green, blue (RGB) components of light, as well as the color temperature (CCT - Correlated Color Temperature) for a wide range of lighting effects.

How does an RF RGB+CCT Controller work?

This controller sends radio frequency signals to a compatible LED lighting system. Users can adjust colors, brightness, and color temperature through buttons or sliders on the controller or a connected smartphone app.

What is the range of an RF RGB+CCT Controller?

The effective range can vary, but typically these controllers work within a range of about 20 to 30 meters (65 to 100 feet) without obstructions.

Can I control multiple lighting zones with one RF RGB+CCT Controller?

Yes, many RF RGB+CCT Controllers are capable of controlling multiple lighting zones separately. This allows for different settings in different areas, all controlled by a single device.

Is an RF RGB+CCT Controller compatible with all LED lighting systems?

Not necessarily. It's important to check the compatibility of the controller with your specific LED lighting system. The LED lights should support RF control and the RGB+CCT function.

How do I pair my RF RGB+CCT Controller with my LED lights?

Pairing usually involves holding a specific button on the controller while the LED lights are powered on. The exact process can vary, so refer to the manufacturer’s instructions.

Can I use my smartphone to control the RF RGB+CCT Controller?

Many models come with smartphone app compatibility, allowing you to control your lighting system via Bluetooth or Wi-Fi through an app.

Are RF RGB+CCT Controllers energy efficient?

The controllers themselves are quite energy-efficient. However, overall energy efficiency also depends on the connected LED lights.

What should I do if my RF RGB+CCT Controller is not responding?

First, check the power source and batteries of the controller. If these are fine, try resetting the controller and re-pairing it with your LED system. Consult the manual for troubleshooting steps.

Where can I purchase an RF RGB+CCT Controller?

These controllers can be purchased at electronics stores, home improvement stores, or online marketplaces. Ensure you buy a controller compatible with your LED lighting system.
