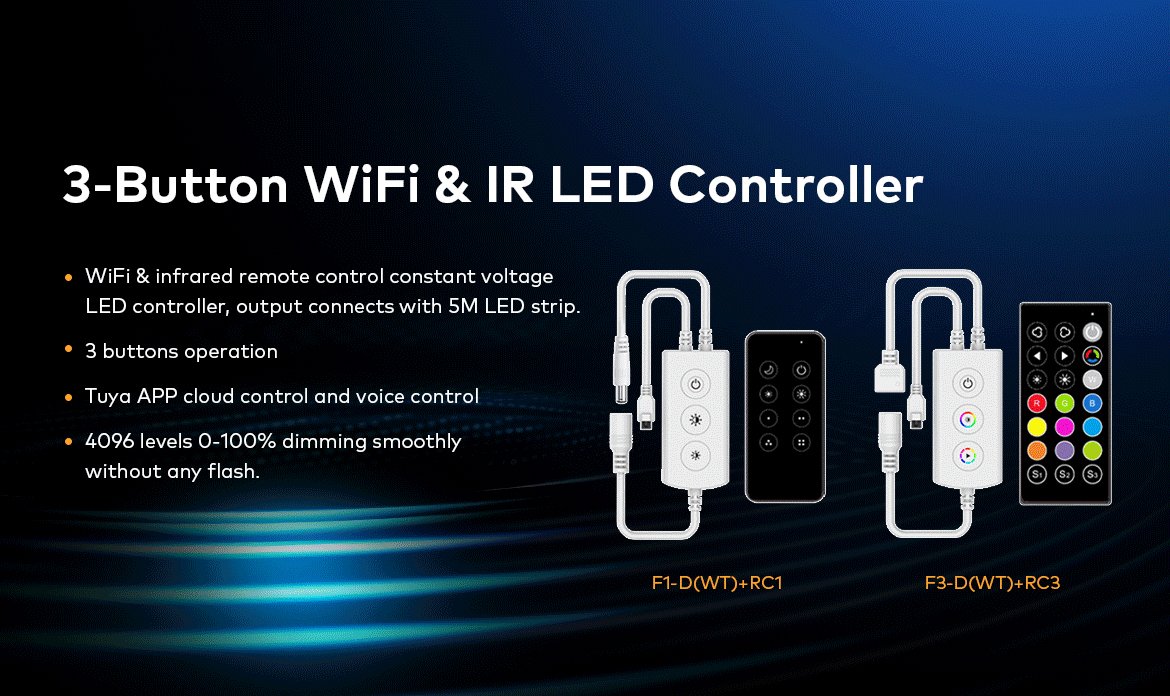

IR Remote LED Controller Series

WiFi & infrared remote control constant voltage LED controller.
Output connects with 5M LED strip.
3 buttons operation Tuya APP cloud control and voice control.
4096 levels 0-100% dimming smoothly without any flash.

IR Remote LED Control Series - Product Line

IR Constant Voltage Controller (Dimming)

F1-S

F1-D(WT)+RC1 (Tuya App)

F1-M+RC1

F1-M(WT)+RC1 (Tuya App)

모델	설명	데이터 시트
F1-S	1CH*4A 12-24VDC IR CV LED Dimmer
F1-D(WT)+RC1 (Tuya App)	1CH*5A 5-24VDC 3-Button WiFi & IR CV LED Dimmer
F1-M+RC1	1CH*5A 5-24VDC IR CV Dimmer
F1-M(WT)+RC1 (Tuya App)	1CH*5A 5-24VDC WiFi & IR CV Dimmer

IR Constant Voltage Controller (CCT)

F2-D(WT)+RC2 (Tuya App)

모델	설명	데이터 시트
F2-D(WT)+RC2 (Tuya App)	2CH*2A 5-24VDC 3-Button WiFi & IR CCT CV LED Controller

IR Constant Voltage Controller (RGB)

F3-D(WT)+RC3 (Tuya App)

F3-M(WT)+RC3 (Tuya App)

모델	설명	데이터 시트
F3-D(WT)+RC3 (Tuya App)	3CH*1.5A 5-24VDC 3-Button WiFi & IR RGB CV LED Controller
F3-M(WT)+RC3 (Tuya App)	3CH*1.5A 5-24VDC WiFi & IR RGB CV LED Controller

IR Constant Voltage Controller (RGBW)

F4-M(WT)+RC3 (Tuya App)

모델	설명	데이터 시트
F4-M(WT)+RC3 (Tuya App)	4CH*1A 5-24VDC WiFi & IR RGBW CV LED Controller

더 많은 제품을 보려면 전체 카탈로그를 다운로드하세요.

최신 카탈로그에 액세스하여 기능, 이점, 사양, 기능 및 보증 등 다양한 관련 세부 정보를 포함하는 광범위한 제품에 대한 포괄적인 통찰력을 얻으십시오. 비용을 절약하고 환경을 보호하려면 종이 없는 버전을 선택하세요.

What is IR (Infrared) ?

Infrared (IR) is a type of electromagnetic radiation. Its wavelengths are longer than those of visible light, placing it just beyond the visible spectrum at the red end. Infrared radiation is commonly used in various applications, including remote controls, thermal imaging cameras, and communications systems. It’s also significant in scientific and medical applications for imaging and heating. Infrared light can be divided into several categories based on its wavelength: near-infrared, mid-infrared, and far-infrared, each with distinct uses and properties.

In LED lighting systems, infrared (IR) technology is often used in remote controls to manage various functions of the lighting setup. IR remote controls send signals using infrared light waves to communicate with the LED device, directing it to turn on or off, change colors, adjust brightness, or switch between different lighting modes.

Here’s how it works:

Transmission of Signals: The remote control contains an IR LED that emits infrared light when you press a button. This light is encoded with instructions based on the button pressed.
Reception: The LED lighting device has an IR receiver, usually a photodiode or a phototransistor, which detects the infrared signals.
Decoding: The receiver decodes the signal into commands that the lighting system understands and executes, such as changing the light color or adjusting the brightness.

The use of IR in remote controls is advantageous because it does not require the remote to be wired to the lighting system, offering convenience and flexibility in controlling the lights. However, the range and angle of control can be limited compared to radio frequency (RF) remotes, and IR remotes require a direct line of sight to the receiver.

리드타임

견본: 리드 타임은 일반적으로 2~3일이며 맞춤 라벨과 같은 맞춤 제작의 경우 연장됩니다.
대량 주문: 처리하는 데 3~4주가 걸립니다.
배송 시간: DHL이나 FedEx와 같은 택배를 통한 특급 배송은 5~7일이 소요되는 반면, 해상 화물은 약 2~4주가 소요됩니다.
보장하다: Boqi는 효율적인 주문 처리 팀을 유지하여 필수 구성 요소를 재고로 확보하여 원자재 부족 중에도 리드 타임을 최소화합니다. 긴급한 프로젝트의 경우 전문 팀이 일정을 준수하는지 확인합니다.

5년 보증

boqi의 R&D 팀, 엄격한 프로토콜 및 고급 공장 단계는 LED 드라이버의 고품질을 보장합니다.

우리 엔지니어들은 전자 및 조명 분야에 대한 심층적인 전문 지식을 바탕으로 강력한 개발 프로세스에 기여하고 있습니다.
우리는 품질을 보장하기 위해 인증된 부품만을 사용하여 엄격한 생산 표준을 시행합니다.
디자인은 상당한 안전성과 성능 마진을 고려하여 제작되어 내구성을 보장합니다.
우리의 검증 시스템은 제품 검증의 정확성에 대한 우리의 약속을 반영하여 세심합니다.

귀하의 요구 사항을 알려주십시오

Boqi는 고객 피드백을 장려하고 특정 요구 사항을 충족하는 사용자 정의 옵션을 제공합니다. 고객이 요구 사항과 제안을 제출할 수 있는 플랫폼을 제공합니다.

*우리는 귀하의 기밀을 존중하며 모든 정보는 보호됩니다

자주하는 질문

What is an IR CV Controller?

An IR Constant Voltage Controller is a device that regulates the voltage to LED lighting systems, controlled remotely via infrared signals.

How do I pair my remote with the IR CV Controller?

To pair your remote, turn on the controller, point the remote at the receiver, and press the designated pairing button until the LED light indicates successful pairing.

What does the DIM function do in an IR CV Controller (DIM)?

The DIM function allows you to adjust the brightness of connected LED lights, providing the ability to create ambient lighting suited to different moods or times of day.

Can I control color temperature with the IR CV Controller (CCT)?

Yes, the CCT controller enables you to adjust the color temperature of dual-white LED strips from warm to cool white, suitable for tasks that require concentration or relaxation.

What colors can I control with the IR CV Controller (RGB)?

The RGB controller lets you manipulate red, green, and blue LEDs to mix various colors and create dynamic lighting scenes and effects.

How does the IR CV Controller (RGBW) differ from the RGB controller?

The RGBW controller adds an extra channel for white light, allowing for more natural light tones and improved color blending compared to the standard RGB controller.

Why isn’t my remote responding with the IR CV Controller?

Ensure there are no obstructions between the remote and the controller’s IR receiver. Check the batteries in the remote and reset the controller if necessary.

How can I reset my IR CV Controller?

Typically, you can reset the controller by unplugging it, waiting for a few seconds, and then reconnecting it. Some models might have a reset button; refer to the use.
