射频DIM控制系统

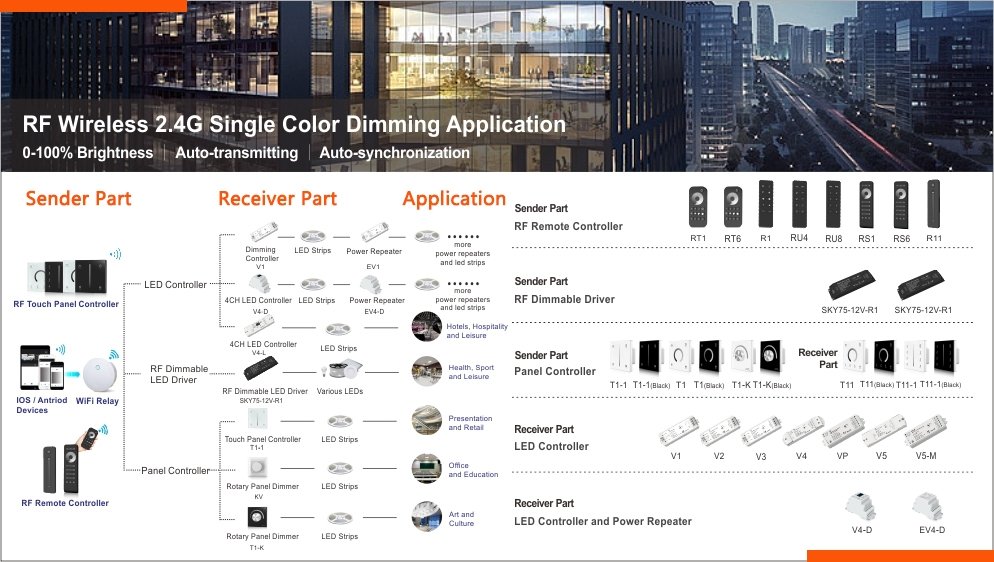

Wireless series products are increasingly utilized in lighting projects due to their attributes of eliminating wiring needs, facilitating straightforward installation, being cost-effective, exhibiting reliable performance, and offering versatile combinations.

Boqi wireless dimming series encompasses a range of controllers (1/2/3/4 channels), remote controls, panel controllers, remotes, and dimmable LED drivers. These products, through various configurations, enable functionalities such as light on/off switching, brightness modulation, grouping, scene setting, scheduling, sensor integration, and other advanced control features.

1. The single-channel dimming controller is compatible with all remote control types (including hand-held, panel, and desktop remotes for dimming, CCT, RGB, RGBW, and RGB+CCT), facilitating 0-100% dimming, 256-level brightness control, and 4096-level grayscale adjustment.
2. Utilizing 2.4G wireless technology, the remote control operates effectively up to 30 meters. The controller’s cascading capability allows signal forwarding between controllers, extending control distances to several hundred meters.
3. The multi-channel (2/3/4) controllers serve as dimming controllers when connected to single-color lights and paired with dimming remote controls.
4. Each controller can pair with up to 10 remote controls, allowing for versatile grouping functions by matching a controller with different remote control zones.
5. A single remote control can manage one or multiple zones, and each zone can pair with an unlimited number of controllers.
6. Controllers within the same zone automatically synchronize.
7. The dimming series includes various components such as constant voltage controllers, constant current controllers, dimming remote controls, dimming panels, constant voltage and constant-current dimmable LED drivers, WiFi-RF converters, and power repeaters, among others.

RF DIM Control System - Product Line

RF Constant Voltage Controller (Dimming)

Supports DC12/24/36/48V power with 1/3/4 channel PWM output for diverse electrical needs.
Features 4096-level flicker-less dimming, 256 brightness levels, and precise gray-scale control.
Wireless 2.4G technology enables a 30-meter remote control range, extendable with cascade function.
Compatible with 1-10 remotes for segmented lighting control.
Dimming remote integration allows single-color light control with multi-channel controllers.
Compatible with remote controls, panels, and WiFi-RF converters for a comprehensive lighting system.
Offers multiple dimming methods: push switches, touch buttons, knobs, and digital displays.
Equipped with over-heat, over-load, short circuit, and reverse polarity protection.
Expandable output with a power repeater for scalable lighting solutions.

V1

V1-L

V1-L/P

V1-H

V1-H/P

S1-HV

V1-F

V1-T

V1-K

V1-B

V1-C

V1-M

V1-W

V1-N(PUSH Dim)

Q1-S(without RF)

VD1

V4-WPS

T1

T1-1

T1-K

V1+R6-1

RT1+V1

V1+R11

型号	描述	数据表
V1	1CH*8A 5-36VDC CV Controller, Push-Dim
V1-L	1CH*15A 12-48VDC CV Controller, Push-Dim
V1-L/P	1CH*15A 12-48VDC CV Controller, Push-Dim
V1-H	1CH*4A/8A 12-48VDC RF Controller Push-Dim Wall Box Mounting
V1-H/P	1CH*4A/8A 12-48VDC CV controller
S1-HV	1CH*1.5A 100-240VAC High voltage LED Strip RF dimmer
V1-F	1CH*8A 12-48VDC CV Fade-in Fade-out LED Dimmer(Push Dim)
V1-T	1CH*20A 12-24VDC CV RF,0 /1-10V,Push-Dim(3-in-1) Controller
V1-K	1CH*20A 12-48VDC CV Controller
V1-B	1CH*20A 12-24VDC CV Controller
V1-C	1CH*20A 12-24VDC CV Controller
V1-M	1CH*5A 12-24VDC CV Mini Controller
V1-W	1CH*3A 12-24VDC CV Mini Controller
V1-N (Push Dim)	1CH*3A 12-24VDC CV Mini Controller
Q1-S( without RF)	1CH*4A 12-24VDC 3-Key Mini Controller
VD1	5-24VDC 1CH*5A RF LED Controller
V4-WPS	4CH*5A 12-36VDC IP67 Waterproof Controller
T1	4CH*3A 12-24VDC CV Dimming Touch Panel Controller
T1-1	4CH*3A 12-24VDC CV Dimming Touch Panel Controller
T1-K	3CH*4A 12-48VDC CV Dimming Controller
V1+R6-1	8A*1CH DIM LED Controller Set
RT1+V1	8A*1CH Single Color LED Controller Kit
V1+R11	8A*1CH LED Controller Set

RF Dimming Remote Controller

The hand-held dimming remote control is available in single zone, 4 zone, and 8 zone configurations, powered either by 7#AAA batteries or a button battery. This variety offers customers a range of choices to suit their specific needs.

The remote is designed for use with single color LED lights, providing capabilities for turning on/off, adjusting brightness, grouping partitions, and setting scenes.
It employs Wireless 2.4G technology, enabling a remote control distance of up to 30 meters. Control distances can extend to several hundred meters through cascading connections between controllers.
The standby time of the remote ranges from six months to two years, varying according to usage frequency.
Each remote can theoretically be paired with an unlimited number of controllers, and for multi-zone remotes, each zone can also be paired with countless controllers.
Every controller can be synchronized with up to 10 different remote controls, and a single controller can be paired across different zones of a remote.

R6-1

R6

RT1

RT6

R11

R1

RU4

RU8

RT8

RS1

RS6

R1-1

RM1

型号	描述	数据表
R6-1	1 Zone Dimming Remote Control
R6	4 Zones Dimming Remote Control
RT1	1 Zone Dimming Remote Control
RT6	4 Zones Dimming Remote Control
R11	1 Zone Dimming Remote Control
R1	1 Zone Dimming Remote Control
RU4	4 Zones Dimming Remote Control
RU8	8 Zones Dimming Remote Control
RT8	8 Zones Dimming Remote Control
RS1	4 Zones Dimming Remote Control
RS6	4 Channels Dimming Remote Control
R1-1	1 Zone Dimming Remote Control
RM1	1 Zone Dimming Remote Control

RF Dimming Panel Remote Controller

The dimming panel remote control is available in configurations ranging from single zone to four zones, encompassing button panels, knob panels, and touch glass panels in both white and black glass. Power options include high voltage AC100-240V, low voltage DC12-24V, 7#AAA battery, or button battery, offering a diverse array of choices for customers.

1. This remote is adept for managing single color LED lights, enabling functions like on/off, brightness control, group partitioning, and scene setting.
2. Utilizing Wireless 2.4G technology, it offers a remote control range of 30 meters, with the potential to extend several hundred meters via cascading connections between controllers.
3. The battery life of the panel remote spans six months to two years, varying based on usage frequency.
4. Theoretically, each remote can be paired with an unlimited number of controllers, and this extends to each zone in a multi-zone remote.
5. Each controller is capable of being paired with 1-10 remote controls and can be assigned to different zones of a single remote control.
6. All dimming panel controllers, including constant voltage controllers, DMX512 masters, Triac dimmers, and 0/1-10V dimmers, can function as remote controls for other RF controllers and also serve as RF controllers to receive signals from other remotes.

PF1-2

PK1

T11-K

T11

T11-1

T21

TW1

TW1-4

RK1

T11(IT)

型号	描述	数据表
PF1-2	2 Zones Dimming Remote Control(CR2032 Battery)
PK1	Dimming Remote Control(CR2032 Battery)
T11-K	Rotary Panel Dimming Remote Control(100-240VAC Input)
T11	4 Zones Dimming Remote Control(100-240VAC Input)
T11-1	4 Zones Dimming Remote Control(100-240VAC Input)
T21	4 Zones Dimming Remote Control(2*AAA Battery)
TW1	1 Zone Wall Mounted Touch wheel Panel Remote Control(CR2032 Battery)
TW1-4	4 Zone Wall Mounted Touch wheel Panel Remote Control(CR2032 Battery)
RK1	Desk Mount Dimming Remote Control(CR2032 Battery)
T11(IT)	4 Zones Dimming Remote Control(100-240VAC Input)

RF CV Dimmable Driver (DIM)

This unit provides a DC12/24V output and features a single channel PWM for constant voltage regulation. The output power ranges between 40-75W, accommodating a variety of lighting needs.
The dimming interface includes RF Wireless and AC Push-Dim options, mirroring the control functions found in boqi RF dimming constant voltage controllers.
For safety, the device is equipped with over-heat, over-load, and short circuit protection systems, which automatically reset to ensure continuous operation.
The product boasts a lifespan of 50,000 hours and comes with a 5-year warranty, underscoring its reliability and quality assurance.

PB-40-12

PB-40-24

PB-75-12

PB-75-24

型号	描述	数据表
PB-40-12	40W 12V RF Dimmable LED Driver, Push-Dim
PB-40-24	40W 24V RF Dimmable LED Driver
PB-75-12	75W 12V RF Dimmable LED Driver
PB-75-24	75W 24V RF Dimmable LED Driver

下载完整产品目录以查看更多产品

请查阅我们的最新产品目录，全面了解我们种类繁多的产品，包括其特点、优势、规格、功能及保修条款等相关详细信息。建议选择电子版，既能节省开支，又能保护环境。.

How to choose right RF Dimming Controller?

Choosing the right RF (Radio Frequency) dimming controller for your lighting system involves considering several key factors:

1. Compatibility with Light Fixtures: Ensure the RF dimming controller is compatible with the type of lights you are using (LED, incandescent, etc.). For LED lights, check if the controller supports the specific type of LED (e.g., constant current or constant voltage).
2. Dimming Range and Performance: Look for a controller that offers a wide dimming range and smooth dimming performance without flickering or noise. This is especially important for environments where ambiance is key.
3. RF Range and Interference: Check the RF range of the controller and ensure it covers the area you need. Also, consider potential interference with other wireless devices and choose a frequency that minimizes this risk.
4. Control Options and Features: Consider the control options you need, like remote control, wall-mounted controls, or compatibility with smart home systems. Some controllers offer additional features like scene setting or scheduling.
5. Ease of Installation and Use: Choose a controller that is easy to install and configure. User-friendliness is crucial for ongoing adjustments and control.
6. Quality and Reliability: Opt for a controller from a reputable manufacturer to ensure quality and reliability. Check for certifications and warranties as an indicator of product quality.
7. Budget and Cost-effectiveness: Balance your budget with the features and quality you need. More expensive controllers might offer more features or better performance, but ensure they align with your specific requirements.

By carefully considering these factors, you can select an RF dimming controller that best suits your lighting needs and provides an optimal balance of performance, convenience, and cost.

交货期

示例： 交货期通常为2-3天，如需定制（例如定制标签）则交货期会相应延长。.
批量订单： 处理时间约为3-4周。.
发货时间： 通过DHL或FedEx等快递公司寄送的快递通常需要5-7天，而海运则需要大约2-4周。.
保证： 博奇拥有一支高效的订单处理团队，通过储备关键零部件，即使在原材料短缺的情况下也能确保交货周期最短。对于紧急项目，专门团队将确保按时完成。.

5年保修

boqi的研发团队、严格的流程规范以及先进的工厂生产工序，确保了我们LED驱动器的高品质。.

我们的工程师在电子和照明领域拥有深厚的专业知识，为公司健全的开发流程做出了贡献。.
我们执行严格的生产标准，仅使用经过认证的零部件，以确保质量。.
设计时预留了充足的安全和性能余量，以确保产品的耐用性。.
我们的验证体系一丝不苟，体现了我们对产品验证精益求精的承诺。.

请告诉我们您的需求

Boqi 鼓励客户提供反馈，并提供定制选项以满足具体需求。该公司为客户提供了一个提交需求和建议的平台。.

*我们尊重您的隐私，所有信息均受到保护

常见问题解答

What is an RF Dimming Controller?

An RF Dimming Controller is a device that uses radio frequency signals to control the brightness of lights, typically LED lights. It allows users to adjust light intensity remotely without the need for direct wiring to the light source.

How does an RF Dimming Controller work?

It works by sending radio frequency signals from a remote control to the dimmer unit, which is connected to the lighting fixture. The dimmer interprets these signals to adjust the light's brightness accordingly.

What types of lights can be controlled with an RF Dimming Controller?

Most RF Dimming Controllers are compatible with a range of lighting types, especially LED lights. However, compatibility can vary, so it's important to check the specifications of both the controller and the lights.

Can I control multiple lights with one RF Dimming Controller?

Yes, many RF Dimming Controllers are designed to control multiple lights or lighting zones. However, the exact number of lights or zones that can be controlled will depend on the specific model of the controller.

What is the range of an RF Dimming Controller?

The operational range can vary depending on the model, but typically, RF controllers have a range of about 20 to 50 meters indoors. Obstructions like walls may reduce this range.

How are RF Dimming Controllers powered?

The controller unit is typically powered by the lighting circuit it's connected to, while the remote control may use batteries.

Can RF Dimming Controllers be integrated with smart home systems?

Some RF Dimming Controllers are designed for compatibility with smart home systems, allowing them to be integrated into a broader home automation setup. It's important to check for compatibility with your specific smart home system.

Are RF Dimming Controllers easy to install?

Installation complexity can vary. Some models are designed for easy DIY installation, while others may require professional installation, especially if they are part of a larger lighting system.
