Is a Transformer Necessary in an LED Driver Circuit? Understanding When and Why

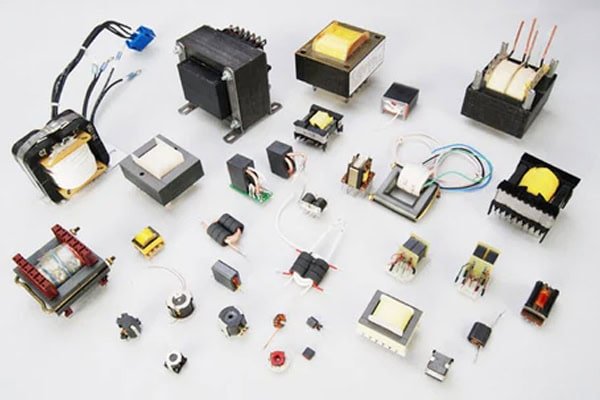

Transformers
The need for a transformer in an LED driver circuit can be confusing. For some designs, it is crucial for safety and performance. For others, it is an avoidable cost. Let's explore when and why transformers are necessary.

A transformer is not always necessary in an LED driver circuit. While isolated LED drivers use transformers for safety and protection, non-isolated drivers achieve current regulation without them, making them more compact and cost-efficient for specific applications.

Not all LED driver circuits are created equal. Some prioritize safety and isolation, while others aim for cost-effectiveness and simplicity. This article will help you understand the role of transformers in LED driver circuits.

What is the Role of a Transformer in an LED Driver Circuit?

a transformer on the led driver board

Transformers serve two main purposes in an LED driver circuit: voltage transformation and electrical isolation. These functions are vital in high-voltage systems to ensure safety and proper operation.

A transformer adjusts voltage levels and provides electrical isolation to protect circuits and users from potential hazards. It also safeguards sensitive components in high-voltage systems.

Voltage Transformation

A transformer changes the voltage from the power source to a level suitable for the LED. For instance, it might step down a 230V AC supply to a lower DC voltage for the LED driver.

Electrical Isolation

Isolation prevents high-voltage faults from reaching the user or damaging downstream components. This is crucial in circuits exposed to human interaction or sensitive systems like medical devices.

Without a transformer, achieving these safeguards requires alternative methods that may not match a transformer's effectiveness.

Isolated vs. Non-Isolated LED Drivers?

isolated vs non isolated led drivers

Understanding the difference between isolated and non-isolated LED drivers can clarify whether a transformer is required.

Isolated LED drivers use transformers to provide electrical separation and protect against high-voltage risks, while non-isolated drivers achieve compactness by eliminating transformers.

Isolated LED Drivers

Isolated drivers rely on transformers to separate the input and output sides electrically. This design ensures safety and compliance with strict regulations, making them suitable for high-power and high-risk applications.

Non-Isolated LED Drivers

Non-isolated drivers remove the transformer, relying instead on direct electrical connections. These drivers are more compact and cost-effective but lack the safety benefits of isolation.

When is a Transformer Necessary?

Certain scenarios demand the inclusion of a transformer in an LED driver circuit, especially when safety and compliance are critical.

Transformers are necessary in high-voltage applications or environments where safety, isolation, and regulatory compliance are non-negotiable.

High-Voltage Applications

In high-voltage setups, transformers step down the voltage and provide isolation. This prevents shocks and protects sensitive devices.

Applications Requiring User Safety

When users interact directly with the lighting, such as in consumer or medical products, isolation becomes essential to meet safety standards.

When Can You Omit a Transformer in an LED Driver Circuit?

In some cases, omitting a transformer is feasible and advantageous. This is common in low-voltage systems where insulation and safety risks are minimal.

Transformer-free designs work best in low-voltage, well-insulated environments or projects with tight cost constraints.

Low-Voltage Applications

If the LED system operates at low voltage (e.g., LED strips), the risks are significantly reduced. Good insulation can further enhance safety.

Cost-Sensitive Designs

Compact non-isolated drivers are ideal for cost-focused projects like LED bulbs or strip lights in controlled environments.

Advantages and Disadvantages of Transformer-Based LED Drivers

Using a transformer in an LED driver circuit has distinct pros and cons, depending on the design priorities.

Transformers enhance safety and compliance but increase size, cost, and complexity in LED driver circuits.

Advantages

1. Ensures electrical isolation and user safety.
2. Complies with safety standards in industrial and medical settings.
3. Handles high-power loads effectively.

Disadvantages

1. Bulky and increases the overall size of the driver.
2. Adds cost, making it less appealing for budget designs.
3. Complex circuitry may require advanced expertise.

Technical Considerations When Designing Transformer-Free Circuits

transformer free circuits

Designing transformer-free LED circuits requires careful attention to safety, performance, and reliability.

Without transformers, maintaining safety involves careful insulation, current regulation, and the use of alternative components for protection.

Ensuring Electrical Safety

1. Use high-quality insulation to protect against faults.
2. Implement surge protection components to prevent damage.

Alternatives to Transformers

Components like inductors and capacitors can regulate current and smooth power delivery. They offer a more compact solution but require precise design.

Practical Examples and Applications

industry lighting

Real-world applications illustrate the trade-offs between using transformers and omitting them.

LED systems with transformers are common in high-power applications, while transformer-free designs suit low-power, compact devices.

With Transformers

• Industrial lighting.
• Medical-grade LED systems.

Without Transformers

• LED bulbs for home use.
• Cabinet lighting and LED strips.

Заключение

Whether a transformer is necessary in an LED driver circuit depends on safety, voltage levels, and application needs. While transformers provide robust protection, transformer-free designs offer compactness and cost-efficiency for specific scenarios.
